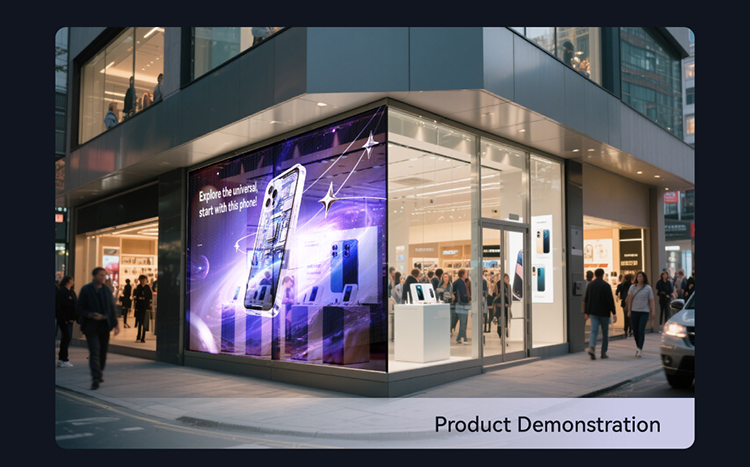

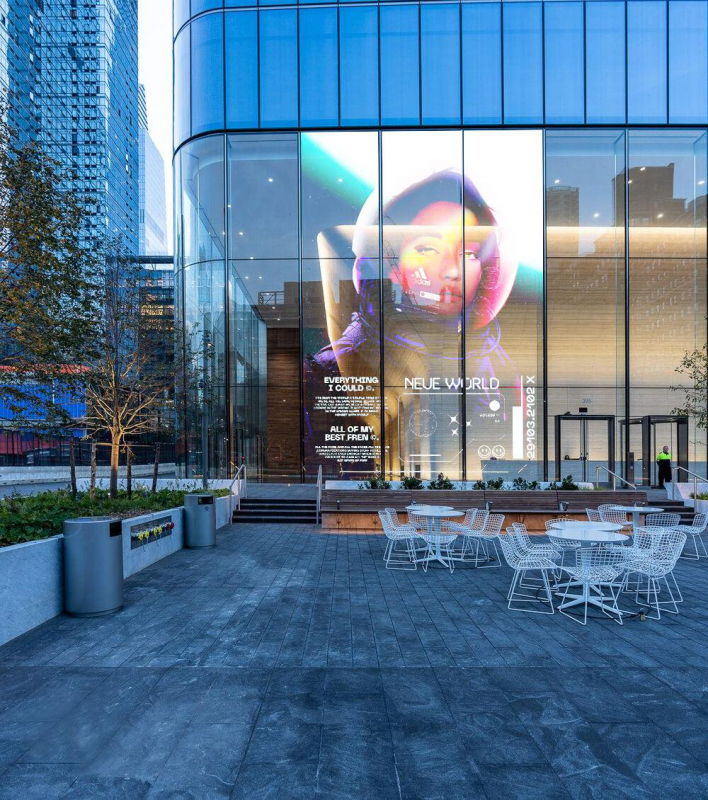

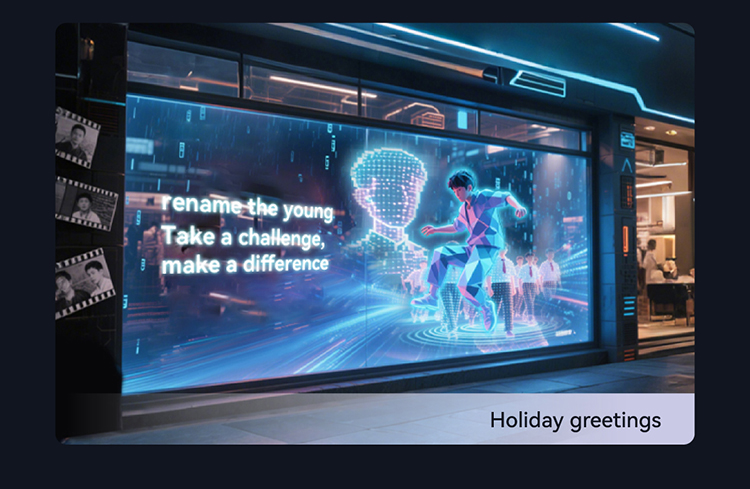

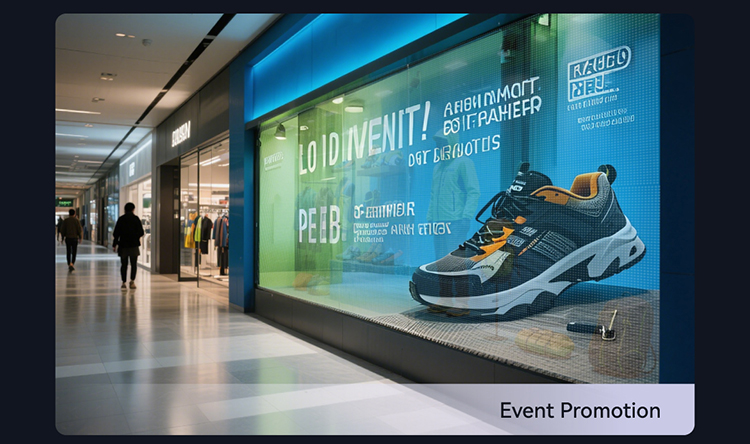

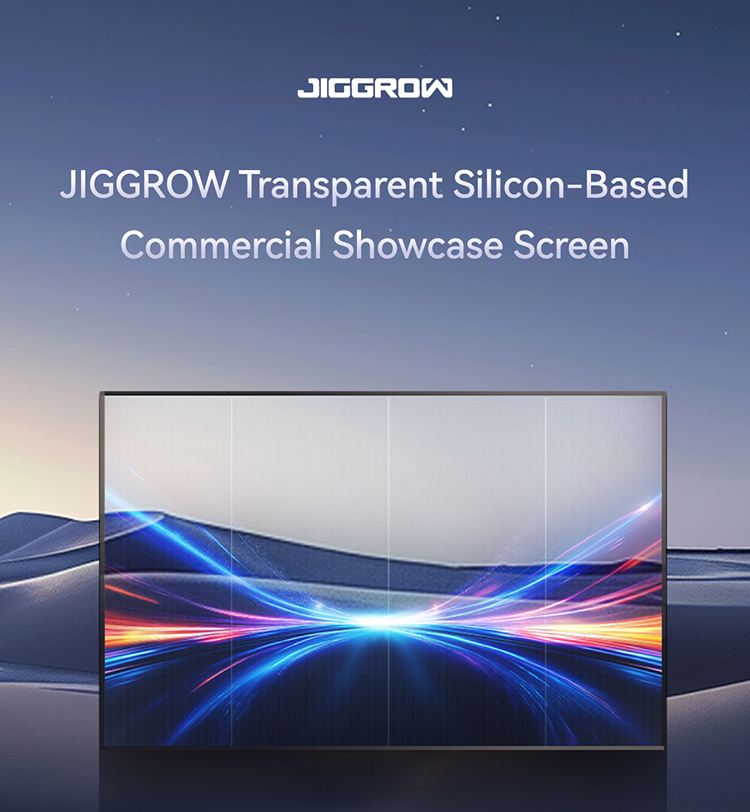

Transparent Silicon-based Commercial Showcase screen are wildely used in shopping centers, cultural venues, commercial service places, indoor and outdoor commercial advertising screens, etc., highlight the store style, expand communication channels and add highlights.
1. Safety Insurance
Meet 3C+CTC dual standards and comply with
building material safety regulations; low voltage safety, IP64 waterproof
outdoor performance, fireproof and explosion-proof.

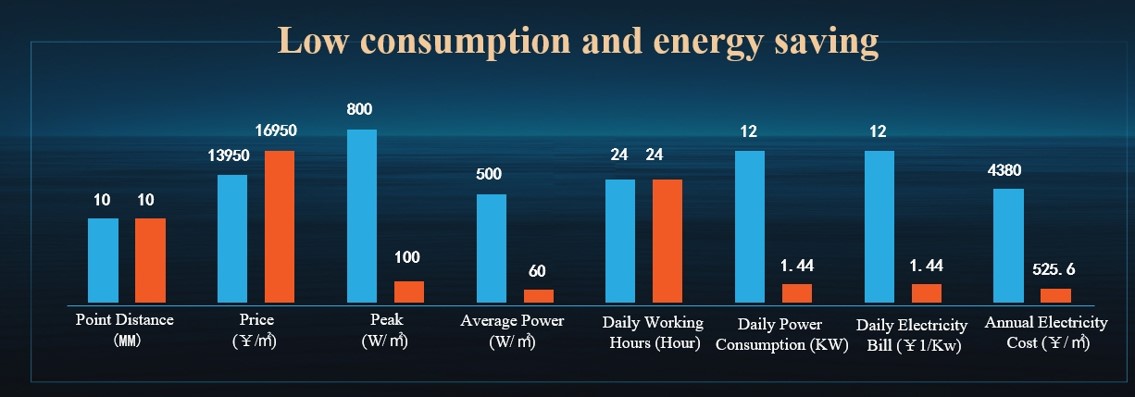

2. Low consumption and energy saving
High conduction, fast heat dissipation, and
energy consumption is only 10-20% of traditional LEDs. It has great advantages
in energy saving, consumption reduction, green and low carbon.
3. Strong durability
Inorganic materials have low attenuation,
dust-proof and corrosion-resistant, good weather resistance features and can
last up to 10 years (the service life is 2-3 times higher than traditional
LEDs)

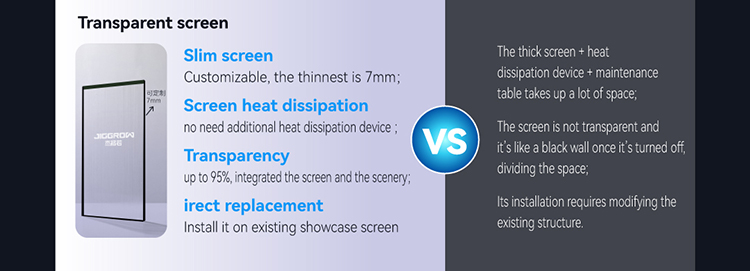

4. Easy to install
Small installation space requirement, no
need to concern heat dissipation configuration; easy and simple after-sales
maintenance.
5. Rich color rendering
High transparency, high brightness, high color saturation, wide color gamut, clearer pixels and superior looking.

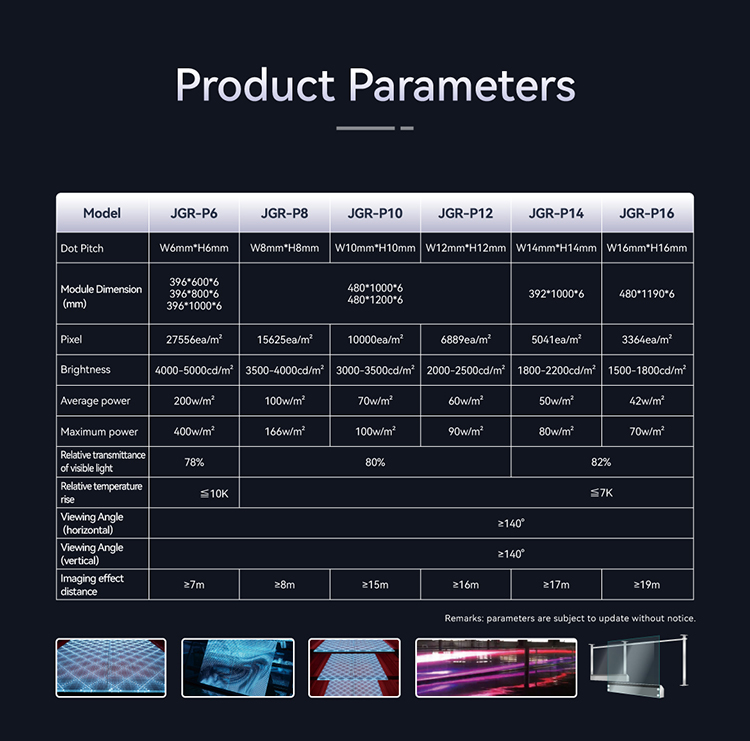

Technological
Parameters
Description

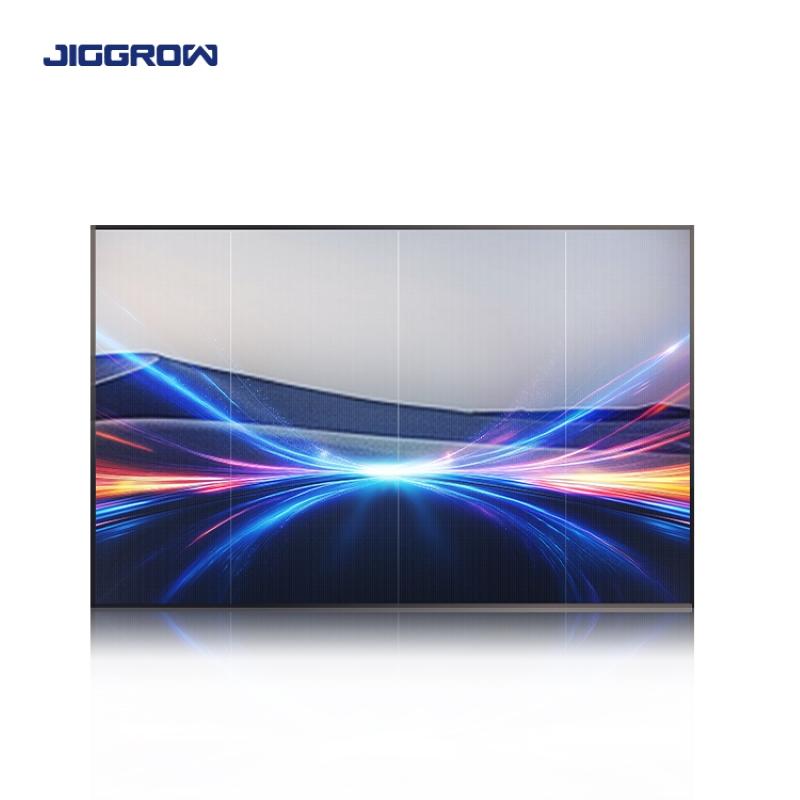

JIGGROW silicon-based transparent screen-P10
Mean time between failures(lamp beads)
≥10000 hours
Half life period(lamp beads)
≥50000 hours
Service life ( the whole unit)
≥50000 hours
Brightness
≥3500cd/m²
Average power consumption
70W/m²
Maximum power consumption
100W/m²
Transparency
80%
Static display
Display original color glass or spray-painted pattern
Optimal viewing distance
≥10m
Best viewing angle
Horizontal: 140° / Vertical: 140°
Work Environment
-40℃~+65℃/10%-95%RH
Storage environment
-40°C~85℃/10%-95%RH
Screen thickness
12-12.8mm
Lamp beads driving mode
Dedicated upgrade internal drive
Power supply requirements
110-220V AC±10% 50/60Hz→DC5V
Weight
≈31kg/m²
